Relay Socket & Accessories

14F-1Z-A1
Rated Current : 12A
Rated Voltage : 300VAC
Contact form : 1Z
Dimensions (mm) : 30.2 * 13 * 13.9

Enquire Now Download PDF

14F-2Z-A1
Rated Current : 8A
Rated Voltage : 300VAC
Contact form : 2Z
Dimensions (mm) : 30.2 * 13 * 13.9

Enquire Now Download PDF

14F-1Z-A1X
Rated Current : 10A
Rated Voltage : 300VAC
Contact form : 2Z
Dimensions (mm) : 30.3 * 13 * 6.7

Enquire Now Download PDF

14F-2Z-A1X
Rated Current : 5A
Rated Voltage : 300VAC
Contact form : 2Z
Dimensions (mm) : 33.3 * 13 * 6.7

Enquire Now Download PDF

LD40 Harness
Rated Current : 40A
Rated Voltage : 300VAC
Contact form : 1A, 1B, 1C
Dimensions (mm) : 28 * 31 * 28.5

Enquire Now Download PDF

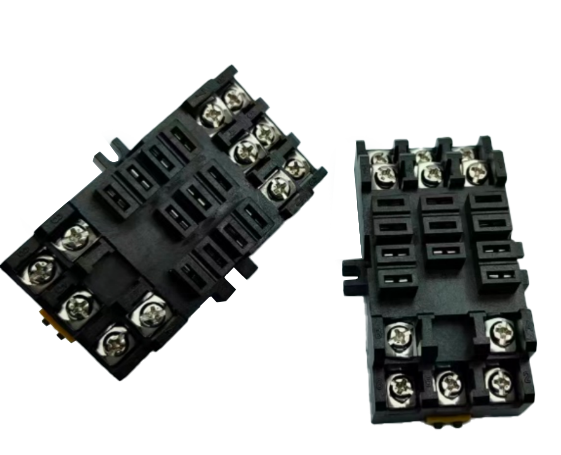

LS38F
Rated Current : 40A
Rated Voltage : 300VAC
Contact form : 3C
Dimensions (mm) : 83.2 * 54.4 * 29.5

Enquire Now Download PDF

PF083A
Rated Current : 10A
Rated Voltage : 250VAC
Contact form : 2C
Dimensions (mm) : 55 * 40 * 31

Enquire Now Download PDF

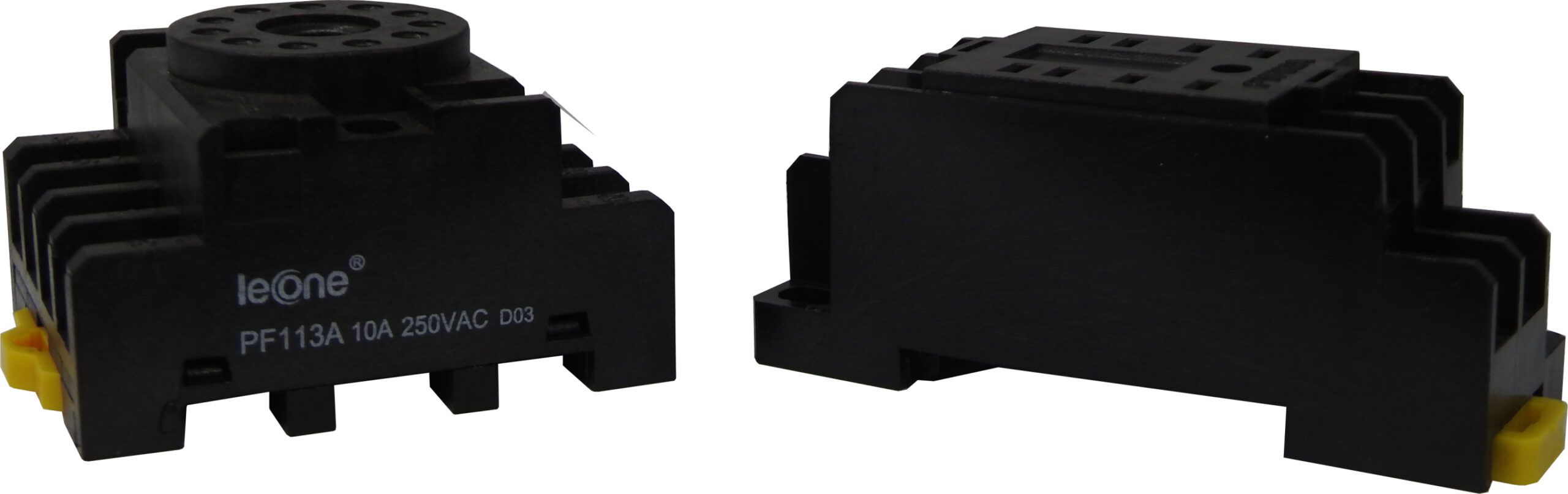

PF113A
Rated Current : 10A
Rated Voltage : 250VAC
Contact form : 3C
Dimensions (mm) : 54.8 * 40 * 20

Enquire Now Download PDF

PY-14-0
Rated Current : 10A
Rated Voltage : 300VAC
Contact form : 4C
Dimensions (mm) :

Enquire Now Download PDF

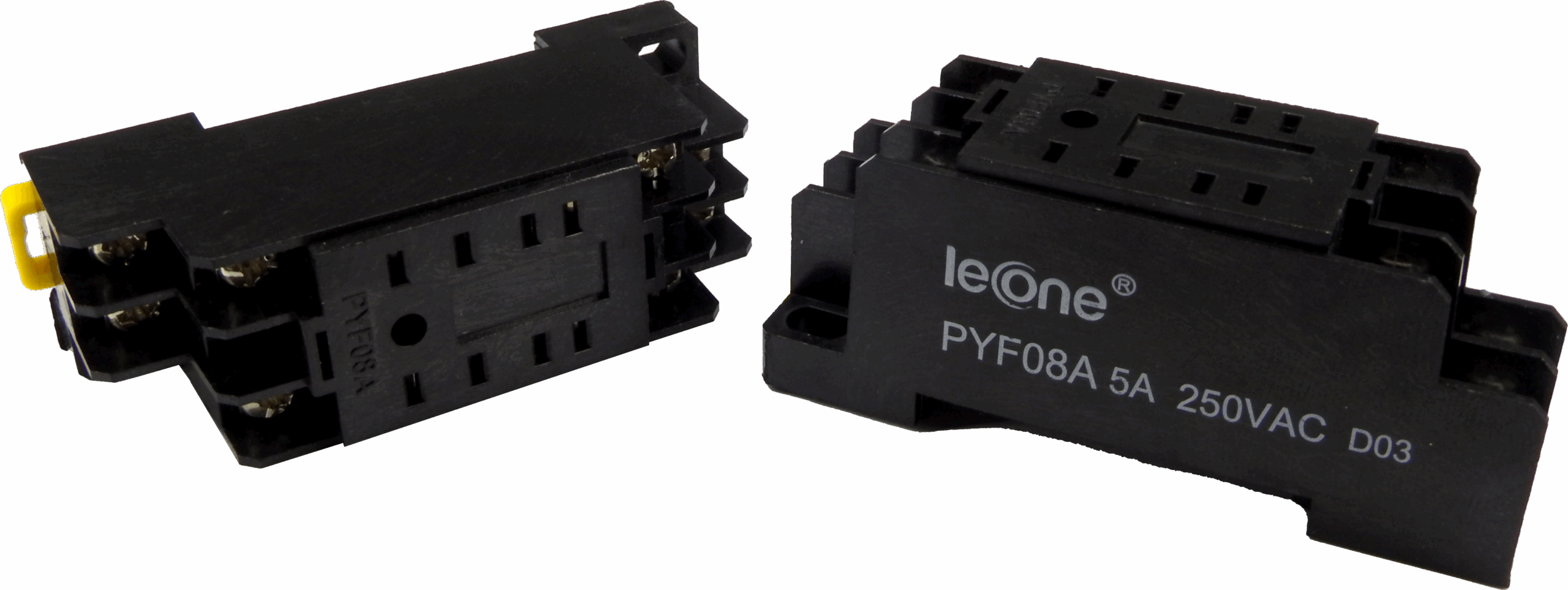

PYF08A
Rated Current : 5A
Rated Voltage : 250VAC
Contact form : 2C
Dimensions (mm) : 75.2 * 22 * 30

Enquire Now Download PDF

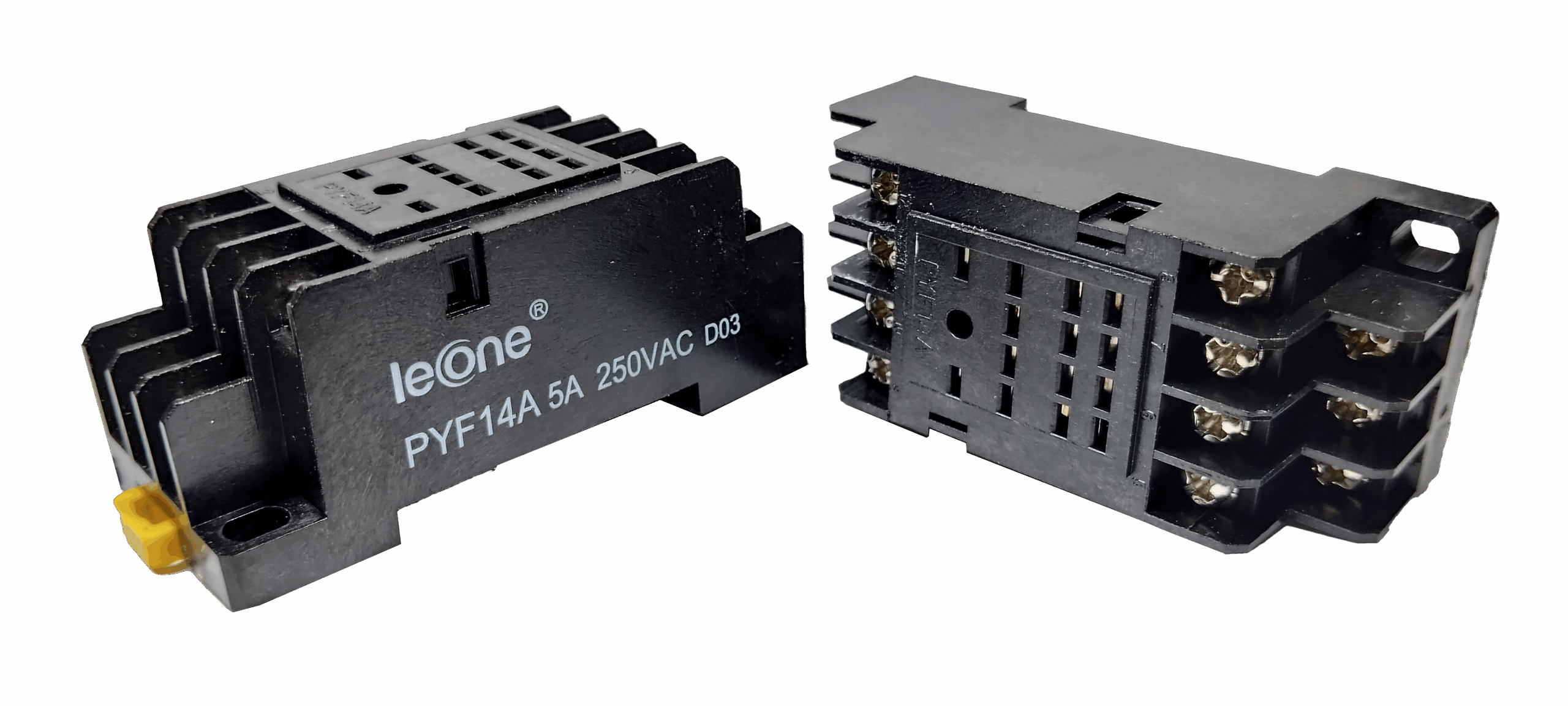

PYF14A
Rated Current : 5A
Rated Voltage : 250VAC
Contact form : 4C
Dimensions (mm) : 71 * 29.5 * 30

Enquire Now Download PDF
