Automotive Relay

Automotive-Relay

SC5A

Switching Current	:	15A
Switiching Voltage	:	16VDC
Contact Form	:	1C
Coil Type	:	DC
Terminal Type	:	PCB
Dimensions (mm)	:	19.5 * 16.5 * 16.5

Enquire Now Download PDF

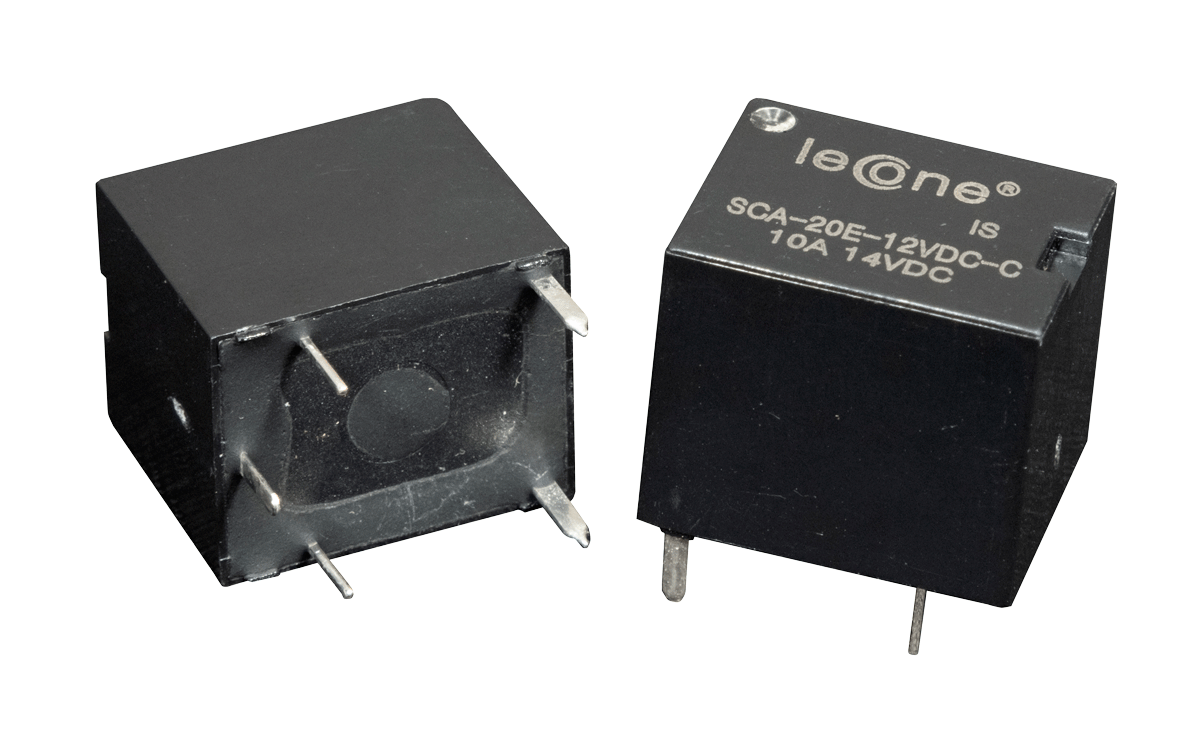

SCA-20E

Switching Current	:	10A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 2A, 1C
Coil Type	:	DC
Terminal Type	:	PCB
Dimensions (mm)	:	15.6 * 12.2 * 13.7

Enquire Now Download PDF

SCA20

Switching Current	:	20A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 2A, 1C
Coil Type	:	DC
Terminal Type	:	PCB
Dimensions (mm)	:	15.6 * 12.2 * 13.7

Enquire Now Download PDF

DSCN6348-removebg-preview

L8N

Switching Current	:	30A
Switiching Voltage	:	14VDC
Contact Form	:	1C
Coil Type	:	DC
Terminal Type	:	PCB
Dimensions (mm)	:	14.3 * 7.2 * 13.8

Enquire Now Download PDF

DSCN6376-removebg-preview

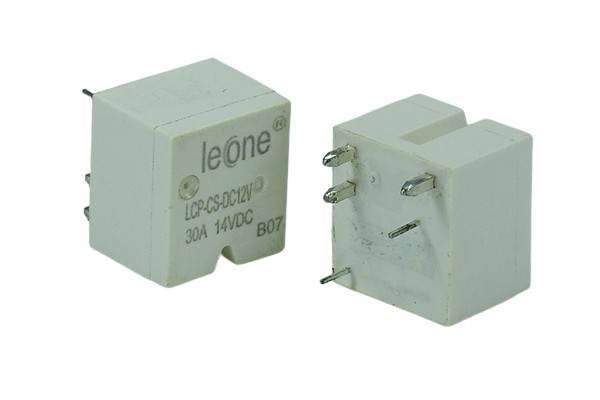

LCP

Switching Current	:	30A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 1C
Coil Type	:	DC
Terminal Type	:	PCB
Dimensions (mm)	:	12.8 * 12 * 9.9

Enquire Now Download PDF

LVJ

Switching Current	:	40A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 1C
Coil Type	:	DC
Terminal Type	:	PCB
Dimensions (mm)	:	23 * 15.3 * 25.5

Enquire Now Download PDF

LAW

Switching Current	:	20A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 1C, 1U, 1W
Coil Type	:	DC
Terminal Type	:	PCB(Open/Sealed)
Dimensions (mm)	:	17.5 * 15 * 19.5

Enquire Now Download PDF

LAR

Switching Current	:	40A
Switiching Voltage	:	12VDC
Contact Form	:	1A, 1C
Coil Type	:	DC
Terminal Type	:	PCB(Open/Sealed)
Dimensions (mm)	:	26.5 * 21.5 * 21

Enquire Now Download PDF

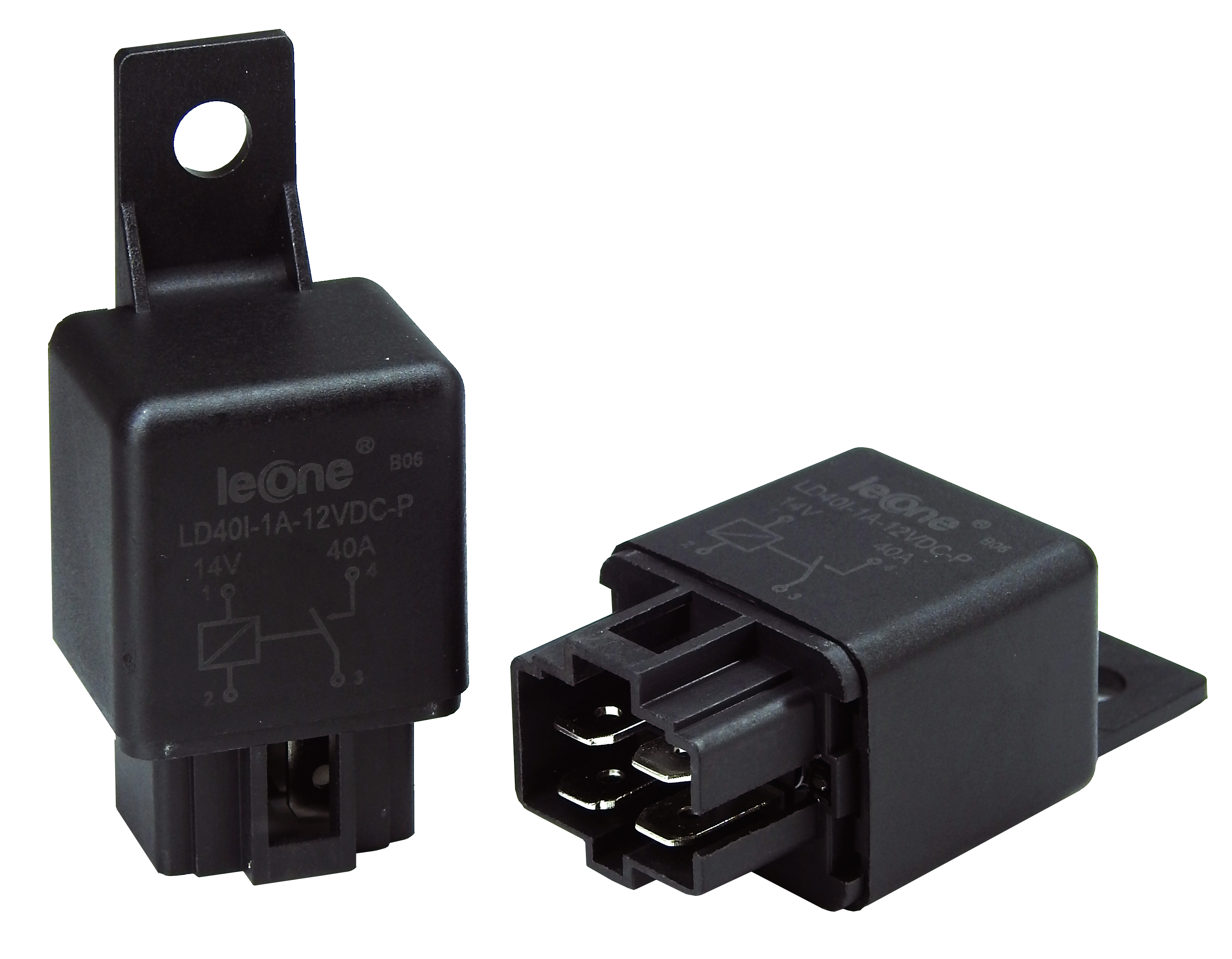

LD40I/LD40J

Switching Current	:	40A
Switiching Voltage	:	14VDC
Contact Form	:	1A
Coil Type	:	DC
Terminal Type	:	Plugin(With, W/O Bracket)
Dimensions (mm)	:	28 * 23.3 * 50/30

Enquire Now Download PDF

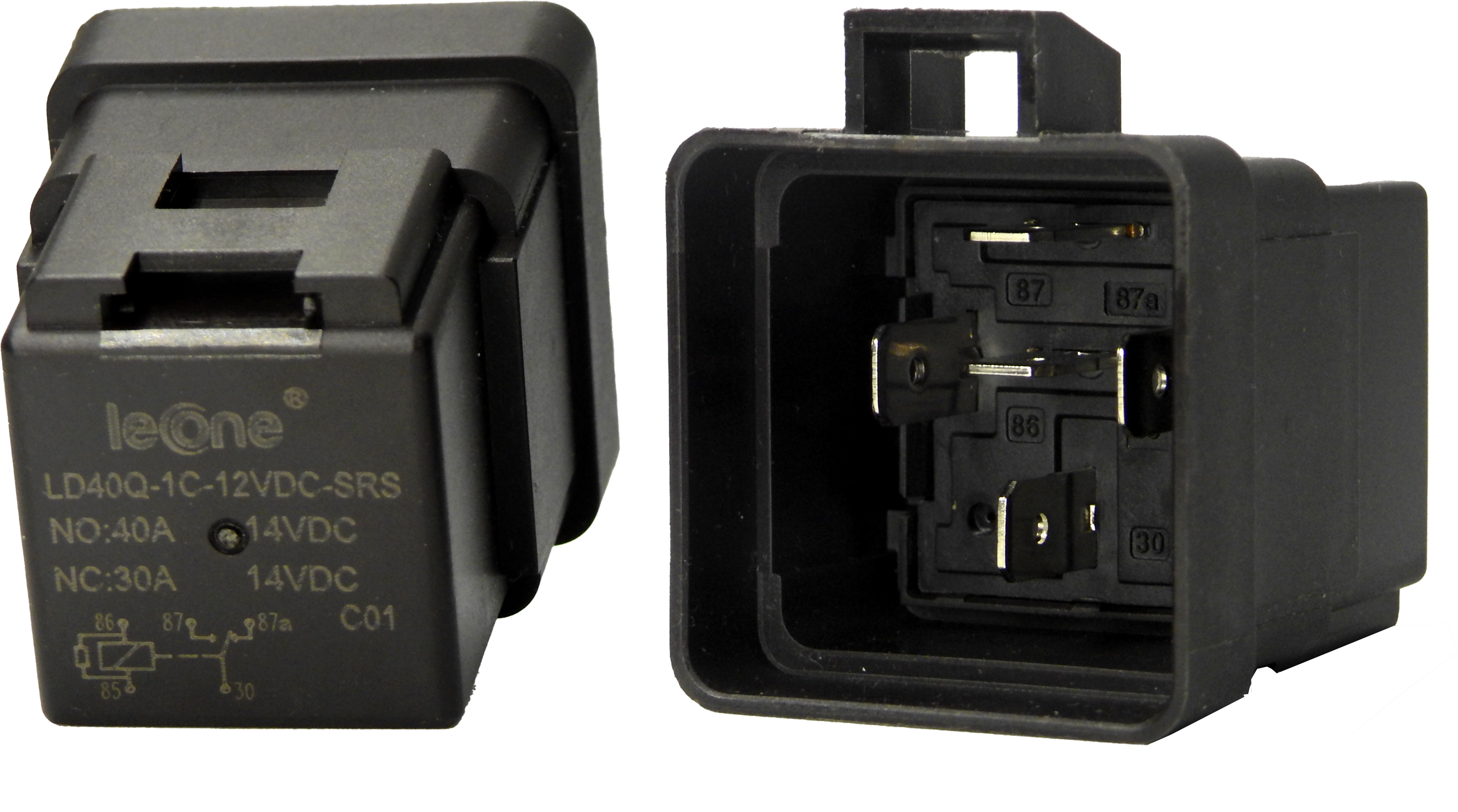

LD40Q

Switching Current	:	40A
Switiching Voltage	:	14VDC
Contact Form	:	1A ,1C
Coil Type	:	DC
Terminal Type	:	Plug In
Dimensions (mm)	:	35.5 * 35.5 * 45/67.5

Enquire Now Download PDF

LVF2

Switching Current	:	20A
Switiching Voltage	:	14VDC
Contact Form	:	1A ,1C
Coil Type	:	DC
Terminal Type	:	PCB, Plug In
Dimensions (mm)	:	20.5 * 15.5 * 22.5

Enquire Now Download PDF

LVF

Switching Current	:	40A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 1C
Coil Type	:	DC
Terminal Type	:	PCB, Plug In
Dimensions (mm)	:	20.5 * 15.5 * 22.5

Enquire Now Download PDF

LD40

Switching Current	:	40A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 1C
Coil Type	:	DC
Terminal Type	:	PCB, Plug In
Dimensions (mm)	:	26.5 * 26.5 * 23.5/39.5

Enquire Now Download PDF

LD70

Switching Current	:	70A
Switiching Voltage	:	14VDC
Contact Form	:	1A, 1C
Coil Type	:	DC
Terminal Type	:	PCB, Plug In
Dimensions (mm)	:	26.5 * 26.5 * 23.5/39.5

Enquire Now Download PDF
